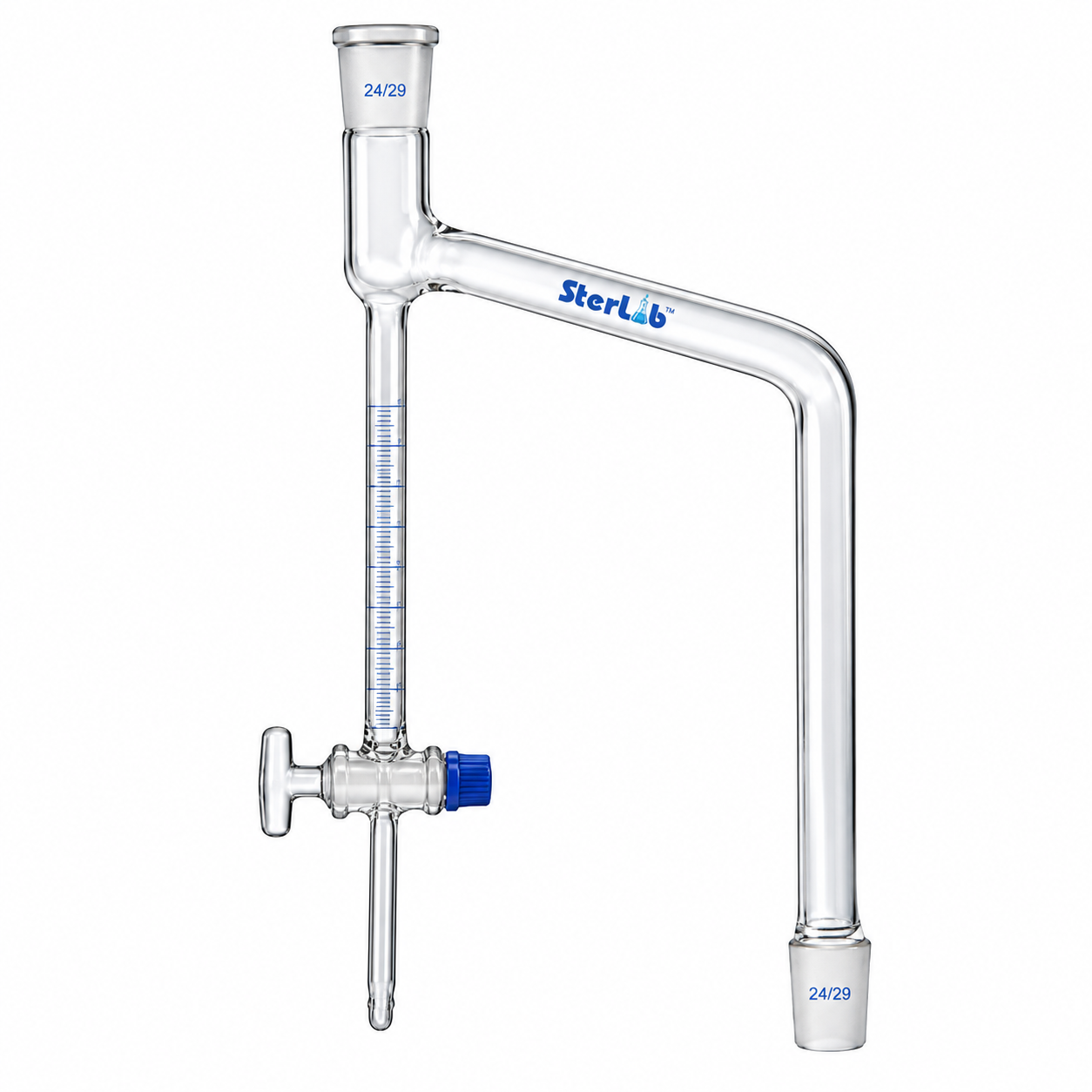

SPARE RECEIVER FOR DEAN AND STARK APPARATUS WITH STOPCOCK – BOROSILICATE GLASS

Spare Receiver for Dean and Stark Apparatus with Stopcock – Borosilicate Glass is designed as a replacement component for compatible Dean and Stark apparatus used in moisture or water content determination by distillation.

The receiver provides a graduated section for collecting and measuring the separated liquid during the analytical procedure. The integrated stopcock allows controlled drainage of the collected liquid when required, supporting convenient operation during moisture analysis.

Manufactured from borosilicate glass, the receiver offers good chemical resistance and thermal resistance when used with compatible solvents and under suitable operating conditions. It is intended for use with a compatible Dean and Stark apparatus; dimensions and connections should match the existing assembly.

The SMC-4026RS series is available in four capacities: 2 ML, 5 ML, 10 ML, and 25 ML, providing replacement options for different receiver requirements.

SPECIFICATIONS

• Product Name: Spare Receiver for Dean and Stark Apparatus with Stopcock

• Catalogue Series: SMC-4026RS

• Material: Borosilicate Glass

• Component Type: Replacement Receiver

• Stopcock: Fitted Stopcock

• Measuring Section: Graduated Receiver

• Application: Collection and Measurement of Separated Liquid During Moisture Determination

• Available Capacities: 2 ML, 5 ML, 10 ML, 25 ML

• Compatibility: Compatible Dean and Stark Apparatus

• Suitable For: Chemical, research, analytical, and general laboratory use

AVAILABLE SIZES / MODELS

KEY FEATURES

• Borosilicate Glass Construction for compatible laboratory applications.

• Replacement Receiver Design for compatible Dean and Stark apparatus.

• Graduated Measuring Section for observing and measuring collected liquid.

• Integrated Stopcock for controlled liquid drainage.

• Four Capacity Options from 2 ML to 25 ML.

• Suitable for Moisture Determination Procedures using compatible distillation equipment.
