PREPARATION ASSEMBLY ALL GLASS – BOROSILICATE GLASS
Glassware (Borosilicate Glass)

PREPARATION ASSEMBLY ALL GLASS – BOROSILICATE GLASS

Product code: SMC-4034 HSN: 7017

The SMC-4034 Preparation Assembly is a laboratory glassware setup manufactured from borosilicate glass, designed for laboratory preparation and distillation procedures. It consists of a round-bottom (R.B.) flask, still head, thermometer, Liebig condenser, and receiver adapter. Available with flask capacities of 500 ML, 1000 ML, and 2000 ML, with different condenser effective lengths to meet various laboratory requirements.

Item codeSize / descriptionQty
SMC-4034/1 500 ML · 300 MM
SMC-4034/2 1000 ML · 350 MM
SMC-4034/3 2000 ML · 400 MM

Enter the quantity next to each size you need (0 = not needed), then add them all in one go.

    Ask on WhatsApp Product PDF
    • Made in our Ambala facility
    • Export packing & documents
    • Custom sizes on request
    Borosilicate Glassware catalogueFull specifications and item codes Download

    Description

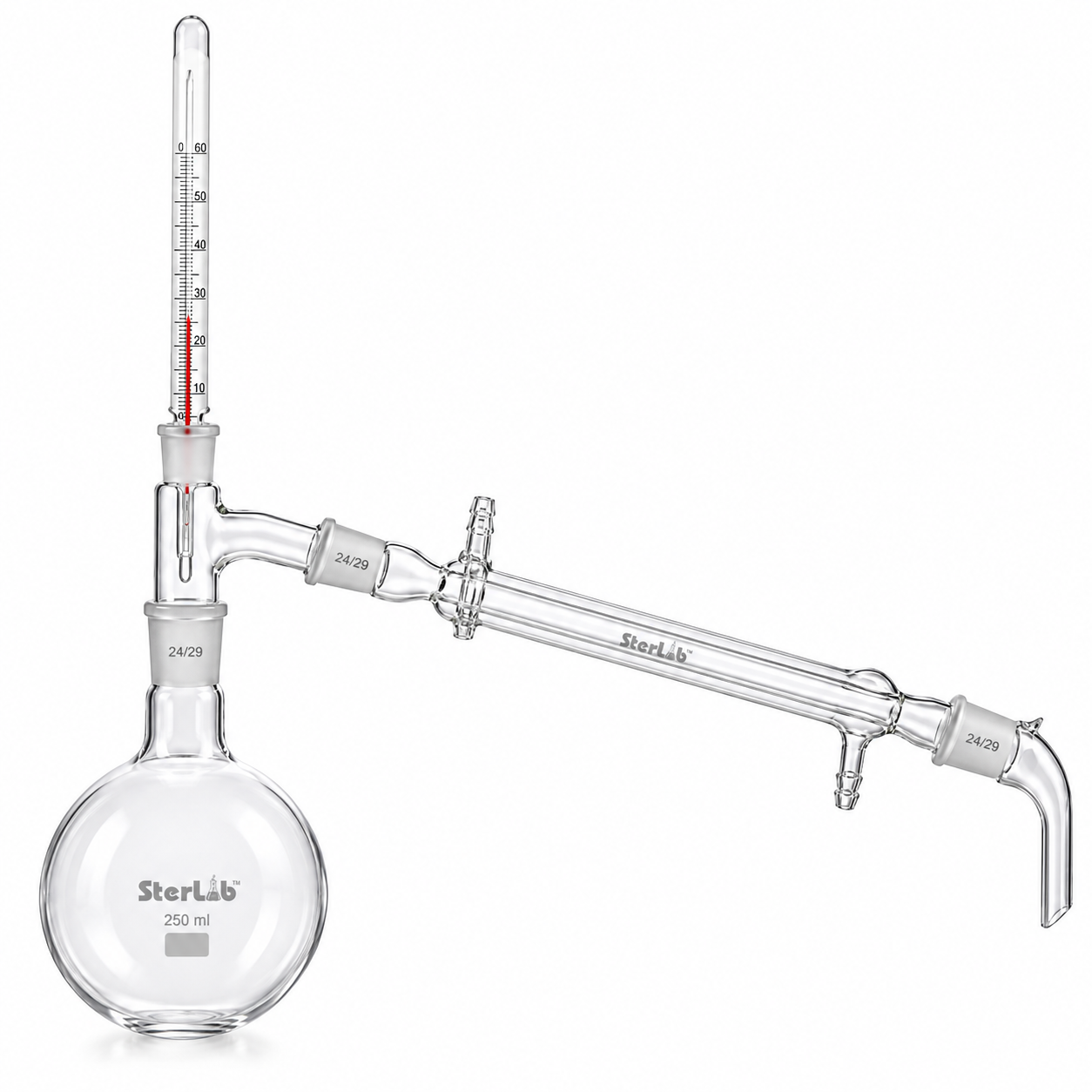

    The SMC-4034 Preparation Assembly is an all-glass laboratory apparatus designed for chemical preparation and distillation applications. Manufactured from borosilicate glass, the assembly comprises a round-bottom flask, still head, thermometer, Liebig condenser, and receiver adapter.

    The round-bottom flask serves as the vessel for holding the material being heated. The still head directs vapours towards the condenser, while the thermometer allows temperature monitoring during the process. The Liebig condenser provides a cooling surface for vapour condensation, and the receiver adapter guides the condensed liquid towards a suitable receiving vessel.

    The assembly is available in three configurations with different flask capacities and condenser effective lengths, making it suitable for educational laboratories, scientific institutions, and research applications.

    SPECIFICATIONS

    • Product Name: Preparation Assembly

    • Catalogue Number: SMC-4034

    • Material: Borosilicate Glass

    • Condenser Type: Liebig Condenser

    • Construction: All-Glass Assembly

    • Components: Round-Bottom Flask, Still Head, Thermometer, Liebig Condenser, and Receiver Adapter

    AVAILABLE SIZES / MODELS

    Catalogue NumberFlask CapacityCondenser Effective Length
    SMC-4034/1500 ML300 MM
    SMC-4034/21000 ML350 MM
    SMC-4034/32000 ML400 MM

    KEY FEATURES

    • Manufactured from borosilicate glass.

    • All-glass assembly for laboratory preparation and distillation procedures.

    • Includes a thermometer for monitoring temperature during operation.

    • Equipped with a Liebig condenser for vapour condensation.

    • Available in three models with different flask capacities and condenser lengths.

    • Suitable for educational, research, and general laboratory use.
