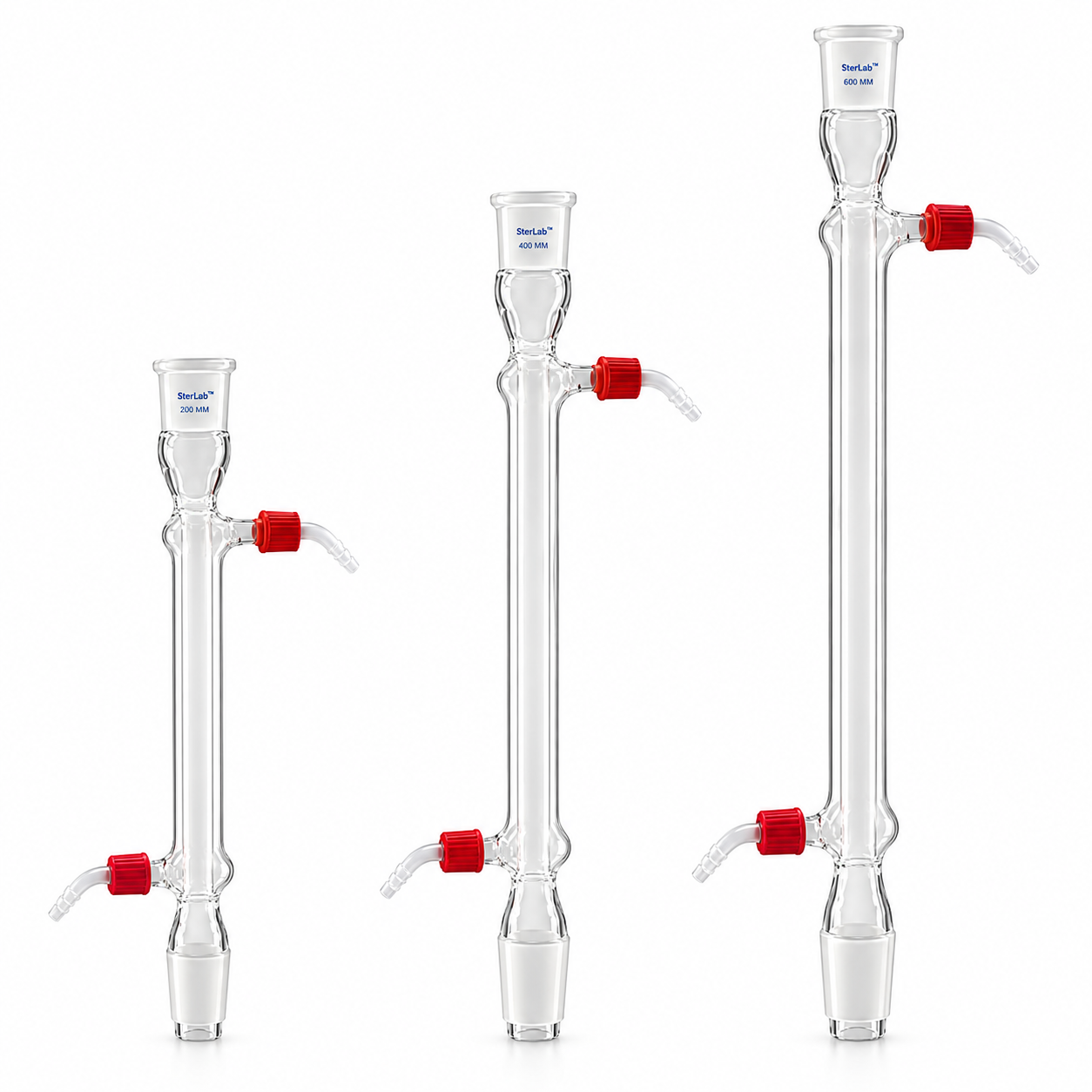

LIEBIG CONDENSERS – BOROSILICATE GLASS

SterLab™ Liebig Condensers are manufactured from borosilicate glass and designed for efficient vapour condensation in laboratory distillation and other compatible chemical processes.

The condenser consists of an inner tube for vapour passage surrounded by an outer jacket through which cooling water circulates. As vapour passes through the inner tube, heat is transferred to the cooling medium, helping convert the vapour into liquid for collection. The coolant typically enters through the lower jacket connection and exits through the upper connection to maintain an effective cooling arrangement.

The range includes multiple condenser lengths and ground-glass joint sizes, allowing compatibility with corresponding laboratory apparatus. Models are available with both socket and cone joints, while selected variants are supplied with a cone joint only, as specified in the model table.

These Liebig condensers are suitable for distillation, solvent recovery, and other laboratory procedures requiring water-cooled condensation, provided the selected condenser is compatible with the process conditions.

SPECIFICATIONS

• Product Name: Liebig Condensers

• Material: Borosilicate Glass

• Condenser Type: Liebig Condenser

• Cooling Method: Water-Cooled

• Construction: Inner vapour tube with outer cooling-water jacket

• Joint Type: Ground-Glass Socket and/or Cone, depending on model

• Available Lengths: 150 MM to 900 MM

• Applications: Distillation, solvent recovery, and laboratory vapour condensation

AVAILABLE SIZES / MODELS

KEY FEATURES

• Borosilicate Glass Construction: Suitable for a range of routine laboratory applications.

• Water-Cooled Design: Facilitates condensation of vapours through heat transfer to circulating coolant.

• Inner Tube and Outer Jacket: Provides separate passages for vapour and cooling water.

• Multiple Length Options: Available in lengths from 150 MM to 900 MM.

• Ground-Glass Joint Options: Different socket and cone sizes support connection with compatible laboratory apparatus.

• Wide Laboratory Applications: Suitable for distillation, solvent recovery, and other appropriate condensation processes.

NOTES

• Joint sizes: B14, B19, B24, and B34 are reproduced from the supplied specifications. Confirm the applicable joint standard and dimensions before ordering.

• Connect cooling-water tubing securely and introduce coolant gradually. Check the jacket and connections for leaks before use.

• Confirm compatibility with the chemicals, temperature, pressure conditions, and apparatus configuration involved in the intended procedure.

• Inspect the condenser and ground-glass joints for cracks, chips, or damage before use. Handle carefully to avoid breakage.
