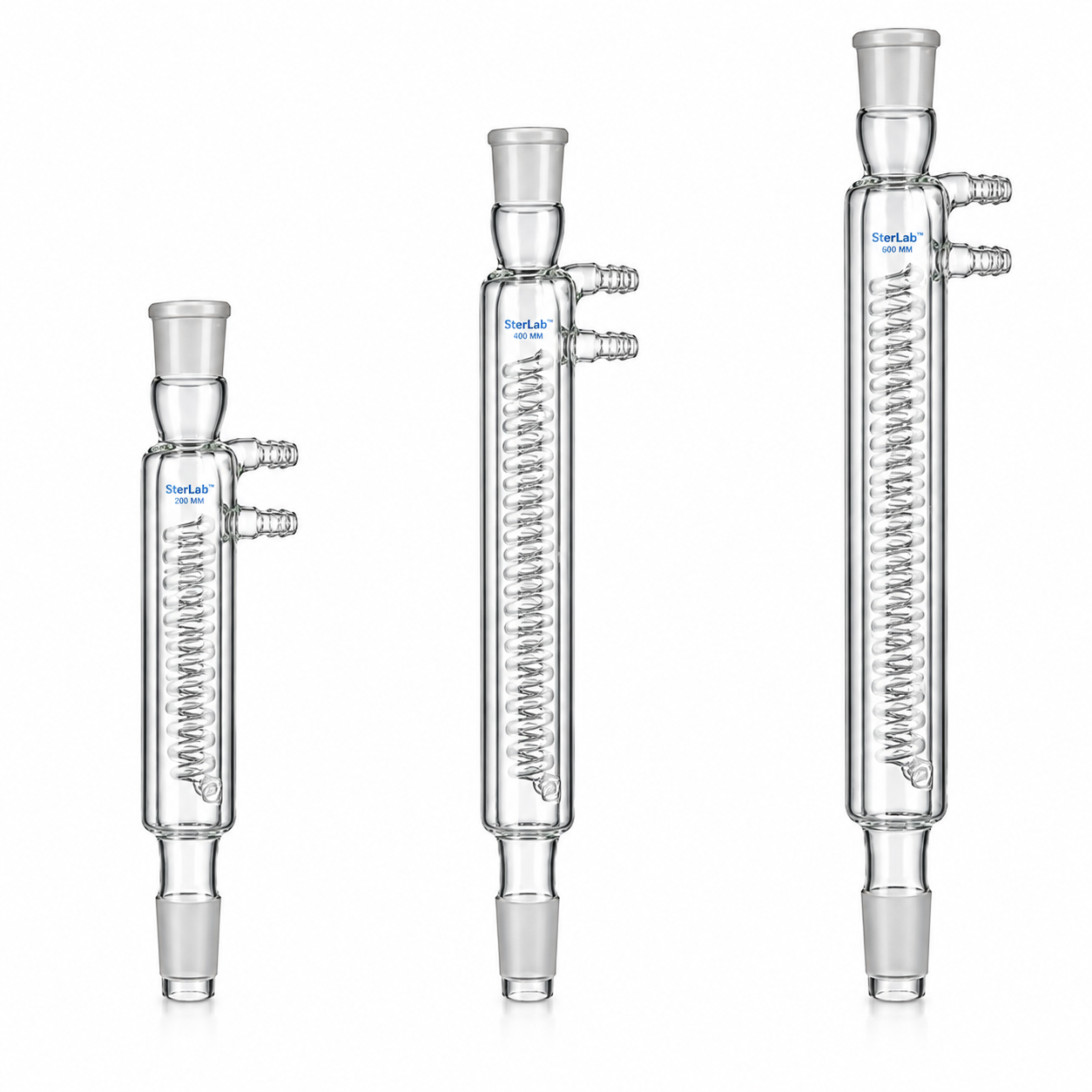

JACKETED COIL CONDENSERS – BOROSILICATE GLASS

Jacketed Coil Condensers – Borosilicate Glass are designed for laboratory processes that require the condensation of vapours through controlled heat exchange. The coiled inner tube provides a vapour passage, while the surrounding outer jacket accommodates the cooling medium, subject to the specific model's flow arrangement.

Constructed from borosilicate glass, these condensers offer good thermal and chemical resistance for compatible laboratory applications. They are available in lengths ranging from 150 MM to 500 MM, with socket and cone joint configurations in B19, B24, and B34 sizes. Selected models are also available with cone joints only in B34 and B40 sizes.

These condensers can be incorporated into compatible laboratory distillation and reflux assemblies. Confirm the cooling connections, joint dimensions, and intended operating conditions before use.

SPECIFICATIONS

• Product Name: Jacketed Coil Condensers

• Material: Borosilicate Glass

• Design: Coiled Condensation Tube with Outer Jacket

• Joint Configuration: Socket and Cone, or Cone Only, depending on model

• Available Joint Sizes: B19, B24, B34, B40

• Available Lengths: 150 MM, 200 MM, 300 MM, 400 MM, 500 MM

• Applications: Laboratory distillation, reflux, and vapour condensation

AVAILABLE SIZES / MODELS

KEY FEATURES

• Borosilicate Glass Construction for suitable laboratory use.

• Jacketed Coil Design for heat exchange during condensation.

• Multiple Joint Options for compatibility with different laboratory assemblies.

• Range of Lengths from 150 MM to 500 MM.

• Various Joint Sizes including B19, B24, B34, and B40.

NOTES

• Confirm the coolant inlet and outlet positions and the flow path against the product drawing before use.

• Verify joint dimensions and compatibility with the connected laboratory glassware.

• Select the appropriate model based on the required joint sizes and condenser length.

• Inspect glassware for cracks or chips before use and avoid sudden temperature changes.
