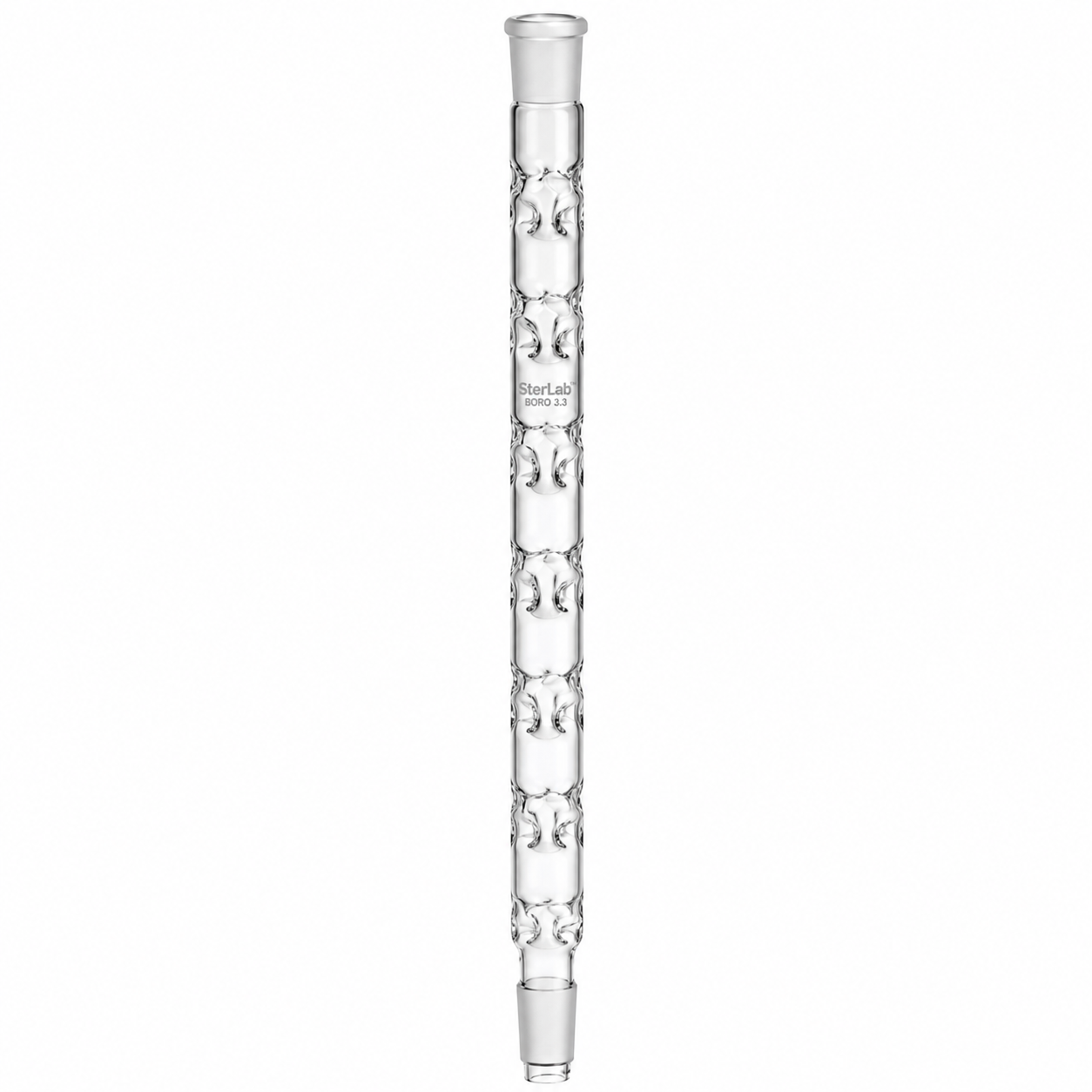

FRACTIONATING COLUMNS, VIGREX – BOROSILICATE GLASS

Fractionating Columns, Vigreux – Borosilicate Glass are designed for laboratory fractional distillation, where liquid mixtures are separated based on differences in their boiling points. The column features internal glass indentations that increase the contact between rising vapours and descending condensate, supporting repeated vapour–liquid interaction during the separation process.

Manufactured from borosilicate glass, these columns offer good thermal and chemical resistance for compatible laboratory applications. The Vigreux design provides an internal fractionating surface without requiring separate packing material, making it suitable for a range of distillation procedures.

The SMC-2019V series is available in lengths ranging from 300 MM to 750 MM, with matching socket and cone joints in B24, B29, and B34 sizes. These options allow users to select a column according to their apparatus configuration and experimental requirements.

SPECIFICATIONS

• Product Name: Fractionating Columns, Vigreux

• Catalogue Series: SMC-2019V

• Material: Borosilicate Glass

• Design: Vigreux-Type Fractionating Column

• Internal Structure: Glass Indentations for Vapour–Liquid Contact

• Joint Configuration: Socket and Cone

• Available Joint Sizes: B24, B29, B34

• Available Lengths: 300 MM, 360 MM, 600 MM, 750 MM

• Application: Fractional distillation and separation of liquid mixtures

AVAILABLE SIZES / MODELS

KEY FEATURES

• Borosilicate Glass Construction for suitable laboratory applications.

• Vigreux Internal Indentations to increase vapour–liquid contact.

• No Separate Packing Required for the column's integral fractionating structure.

• Multiple Length Options to suit different distillation setups.

• Standard Socket and Cone Joint Configurations for compatible laboratory glassware.

• Suitable for Fractional Distillation in laboratory applications.
