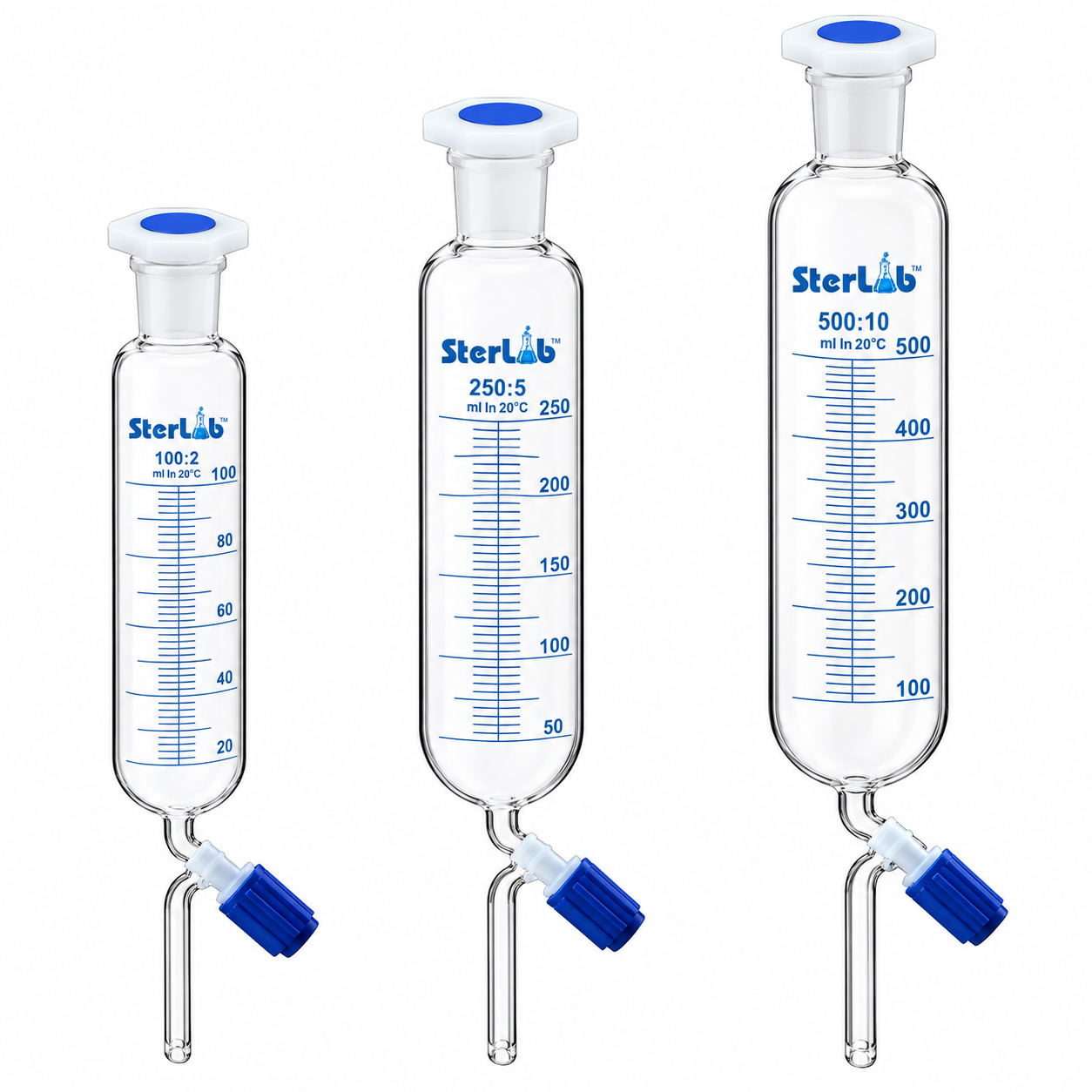

DROPPING FUNNELS CYLINDRICAL, WITH SOCKET, GLASS OR ROTAFLOW STOPCOCK – BOROSILICATE GLASS
Glassware (Borosilicate Glass)

DROPPING FUNNELS CYLINDRICAL, WITH SOCKET, GLASS OR ROTAFLOW STOPCOCK – BOROSILICATE GLASS

Product code: SMC-4014 HSN: 7017

Cylindrical Dropping Funnels are laboratory glassware designed for the controlled addition of liquids and reagents during chemical reactions, synthesis, and other laboratory procedures. Manufactured from borosilicate glass, these funnels feature a cylindrical body, upper socket, lower stem with cone, and a glass or Rotaflow stopcock for regulating liquid flow. Supplied without a stopper, they are available in capacities of 100 ML, 250 ML, 500 ML, and 1000 ML, with specified socket and cone joint sizes.

Item codeSize / descriptionQty
SMC-4014/1 B19 · B19 · 100 ML
SMC-4014/2 B24 · B24 · 250 ML
SMC-4014/3 B24 · B24 · 500 ML
SMC-4014/4 B24 · B24 · 1000 ML

Enter the quantity next to each size you need (0 = not needed), then add them all in one go.

    Ask on WhatsApp Product PDF
    • Made in our Ambala facility
    • Export packing & documents
    • Custom sizes on request
    Borosilicate Glassware catalogueFull specifications and item codes Download

    Description

    Dropping Funnels, Cylindrical, with Socket, Glass or Rotaflow Stopcock and Stem with Cone, without Stopper – Borosilicate Glass are designed for introducing liquids and reagents gradually into a reaction vessel or laboratory assembly. They are particularly useful in chemical reactions where the rate of liquid addition needs to be controlled.

    The cylindrical body provides capacity for holding the liquid to be added. The stopcock allows the operator to regulate or stop the flow through the lower stem, while the conical joint at the stem end enables connection to compatible laboratory glassware.

    The upper socket joint allows the funnel to be fitted to matching laboratory apparatus. Depending on the model, the stopcock may be of glass or Rotaflow type. These funnels are supplied without a stopper, allowing the appropriate compatible stopper to be selected separately if required.

    Manufactured from borosilicate glass, these funnels offer good thermal and chemical resistance when used with compatible laboratory chemicals and under suitable operating conditions. The SMC-4014 series is available in capacities from 100 ML to 1000 ML, with socket and cone sizes specified for each model.

    SPECIFICATIONS

    • Product Name: Cylindrical Dropping Funnel with Socket and Stopcock

    • Catalogue Series: SMC-4014

    • Material: Borosilicate Glass

    • Body Shape: Cylindrical

    • Stopcock Type: Glass or Rotaflow, depending on model

    • Upper Connection: Socket Joint

    • Lower Connection: Stem with Cone Joint

    • Stopper: Not Included

    • Application: Controlled Addition of Liquids and Reagents

    • Available Capacities: 100 ML, 250 ML, 500 ML, 1000 ML

    • Suitable For: Educational, research, analytical, and general laboratory use

    AVAILABLE SIZES / MODELS

    Catalogue NumberSocket SizeCone SizeCapacity
    SMC-4014/1B19B19100 ML
    SMC-4014/2B24B24250 ML
    SMC-4014/3B24B24500 ML
    SMC-4014/4B24B241000 ML

    KEY FEATURES

    • Borosilicate Glass Construction for compatible laboratory applications.

    • Cylindrical Design for holding liquids and reagents.

    • Glass or Rotaflow Stopcock Options for controlled liquid flow.

    • Socket and Cone Joints for connection to compatible laboratory glassware.

    • Supplied Without Stopper, as specified.

    • Multiple Capacity Options from 100 ML to 1000 ML.

    • Suitable for Controlled Reagent Addition in chemical reactions and laboratory procedures.
