DISTILLATION ASSEMBLY ALL GLASS - BOROSILICATE GLASS

Product code: SMC-4028 HSN: 7017

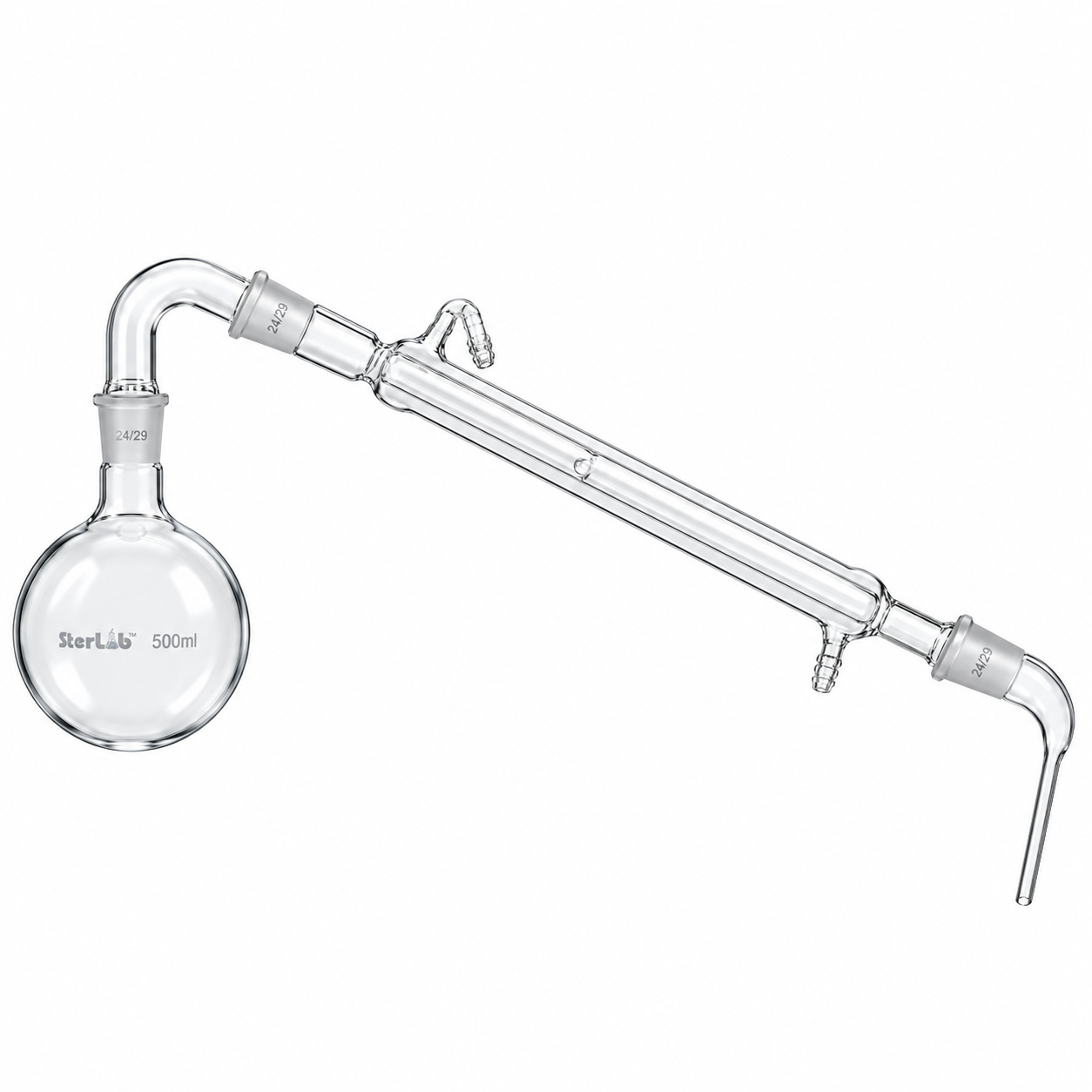

Distillation Assembly – Borosilicate Glass is a laboratory glassware set designed for distillation, separation, and purification of suitable liquids. The assembly consists of a round-bottom (R.B.) flask, splash head, double-surface condenser, and receiver adapter. Manufactured from borosilicate glass, it is available with flask capacities ranging from 2000 ML to 10000 ML and condenser effective lengths from 200 MM to 600 MM, depending on the model.

Item codeSize / descriptionQty
SMC-4028/1 2000 ML · 200 MM
SMC-4028/2 3000 ML · 300 MM
SMC-4028/3 5000 ML · 400 MM
SMC-4028/4 10000 ML · 600 MM

Enter the quantity next to each size you need (0 = not needed), then add them all in one go.

    Ask on WhatsApp Product PDF
    • Made in our Ambala facility
    • Export packing & documents
    • Custom sizes on request
    Borosilicate Glassware catalogueFull specifications and item codes Download

    Description

    Distillation Assembly with Round-Bottom Flask, Splash Head, Double-Surface Condenser and Receiver Adapter – Borosilicate Glass is designed for laboratory distillation procedures involving the vaporization and subsequent condensation of suitable liquids.

    The round-bottom flask holds the liquid sample for heating. The splash head helps reduce the carryover of liquid droplets into the condenser during distillation. The double-surface condenser provides a cooling surface for condensing vapours back into liquid, while the receiver adapter directs the condensed liquid into a suitable collection vessel.

    Manufactured from borosilicate glass, the assembly offers good chemical resistance and thermal resistance when used with compatible substances and under appropriate operating conditions. Its transparent construction allows visual observation of the distillation process.

    The SMC-4028 series is available in four configurations, with round-bottom flask capacities of 2000 ML, 3000 ML, 5000 ML, and 10000 ML and condenser effective lengths ranging from 200 MM to 600 MM.

    SPECIFICATIONS

    • Product Name: Distillation Assembly

    • Catalogue Series: SMC-4028

    • Material: Borosilicate Glass

    • Assembly Components:

      • Round-Bottom (R.B.) Flask

      • Splash Head

      • Double-Surface Condenser

      • Receiver Adapter

    • Application: Distillation, Liquid Separation, and Purification

    • Available Flask Capacities: 2000 ML, 3000 ML, 5000 ML, 10000 ML

    • Condenser Effective Lengths: 200 MM, 300 MM, 400 MM, 600 MM

    • Suitable For: Educational, research, analytical, and general laboratory use

    AVAILABLE SIZES / MODELS

    Catalogue NumberRound-Bottom Flask CapacityCondenser Effective Length
    SMC-4028/12000 ML200 MM
    SMC-4028/23000 ML300 MM
    SMC-4028/35000 ML400 MM
    SMC-4028/410000 ML600 MM

    KEY FEATURES

    • Borosilicate Glass Construction for compatible laboratory applications.

    • Complete Distillation Assembly comprising four essential glassware components.

    • Round-Bottom Flask for holding liquid samples during heating.

    • Splash Head to help reduce liquid-droplet carryover.

    • Double-Surface Condenser for cooling and condensing vapours.

    • Receiver Adapter for directing condensed liquid into a collection vessel.

    • Multiple Capacity and Condenser-Length Options to suit different laboratory requirements.
