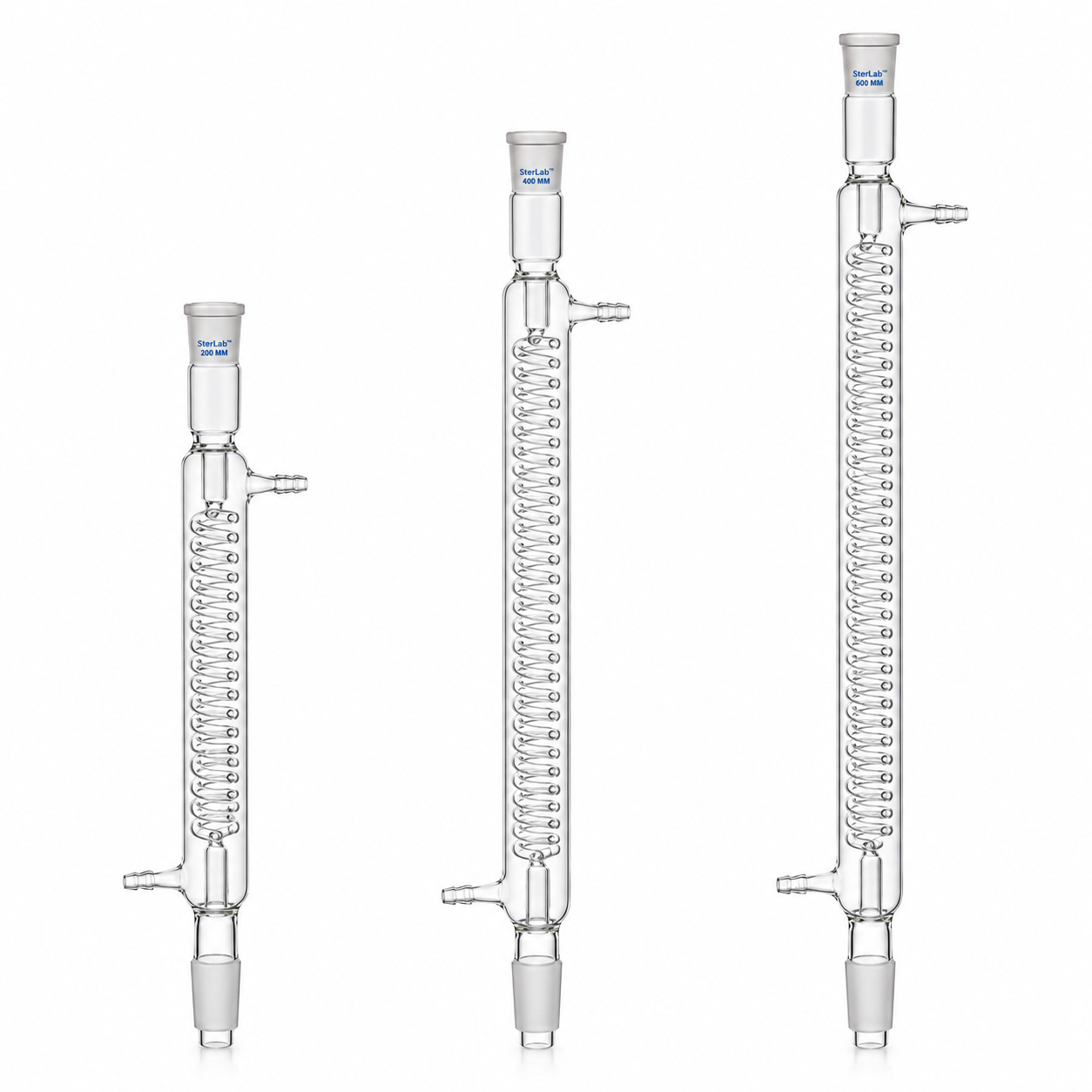

COIL CONDENSERS, GRAHAM, COILED DISTILLATE TYPE – BOROSILICATE GLASS

SterLab™ Graham Coil Condensers, Coiled Distillate Type, are manufactured from borosilicate glass and designed for vapour condensation in compatible laboratory apparatus.

The condenser features a coiled inner tube that increases the vapour passage length and provides an extended surface for heat transfer. As vapour travels through the coil, heat is transferred to the surrounding cooling medium, allowing the vapour to condense into liquid under suitable operating conditions.

The condenser is designed for connection to compatible laboratory glassware through its ground-glass socket and cone joints. The available range includes different lengths and joint sizes to accommodate various laboratory setups.

These condensers are suitable for distillation, reflux, and other laboratory procedures requiring condensation, provided the selected model is appropriate for the intended process and operating conditions.

SPECIFICATIONS

• Product Name: Coil Condensers, Graham, Coiled Distillate Type

• Catalogue Number: SMC-2012 Series

• Material: Borosilicate Glass

• Condenser Type: Graham Coil Condenser

• Design: Coiled Inner Tube

• Joint Type: Ground-Glass Socket and Cone, depending on model

• Function: Vapour condensation

• Available Lengths: 150 MM to 600 MM

• Applications: Distillation, reflux, and other compatible laboratory condensation procedures

AVAILABLE SIZES / MODELS

KEY FEATURES

• Borosilicate Glass Construction: Suitable for a range of routine laboratory applications.

• Graham Coil Design: Provides an extended vapour passage and heat-transfer surface.

• Effective Vapour Condensation: Supports condensation under suitable operating conditions.

• Multiple Length Options: Available in lengths from 150 MM to 600 MM.

• Ground-Glass Joint Connections: Available in B14, B19, B24, and B34 configurations.

• Versatile Laboratory Use: Suitable for compatible distillation and reflux assemblies.

NOTES

• Cooling arrangement: Confirm the exact coolant passage and connection configuration with the supplier before installation.

• Joint sizes: B14, B19, B24, and B34 are reproduced from the supplied specifications. Confirm the applicable joint standard and dimensions before ordering.

• Ensure all connections are compatible and secure before use.

• Confirm suitability for the chemicals, temperatures, and operating conditions involved in the intended procedure.

• Inspect the condenser and ground-glass joints for cracks, chips, or damage before use. Handle carefully to avoid breakage.
