CHROMATOGRAPHY COLUMNS WITH INTEGRAL SINTERED DISC, WITHOUT STOPCOCK – BOROSILICATE GLASS
Glassware (Borosilicate Glass)

CHROMATOGRAPHY COLUMNS WITH INTEGRAL SINTERED DISC, WITHOUT STOPCOCK – BOROSILICATE GLASS

Product code: SMC-2018 HSN: 7017

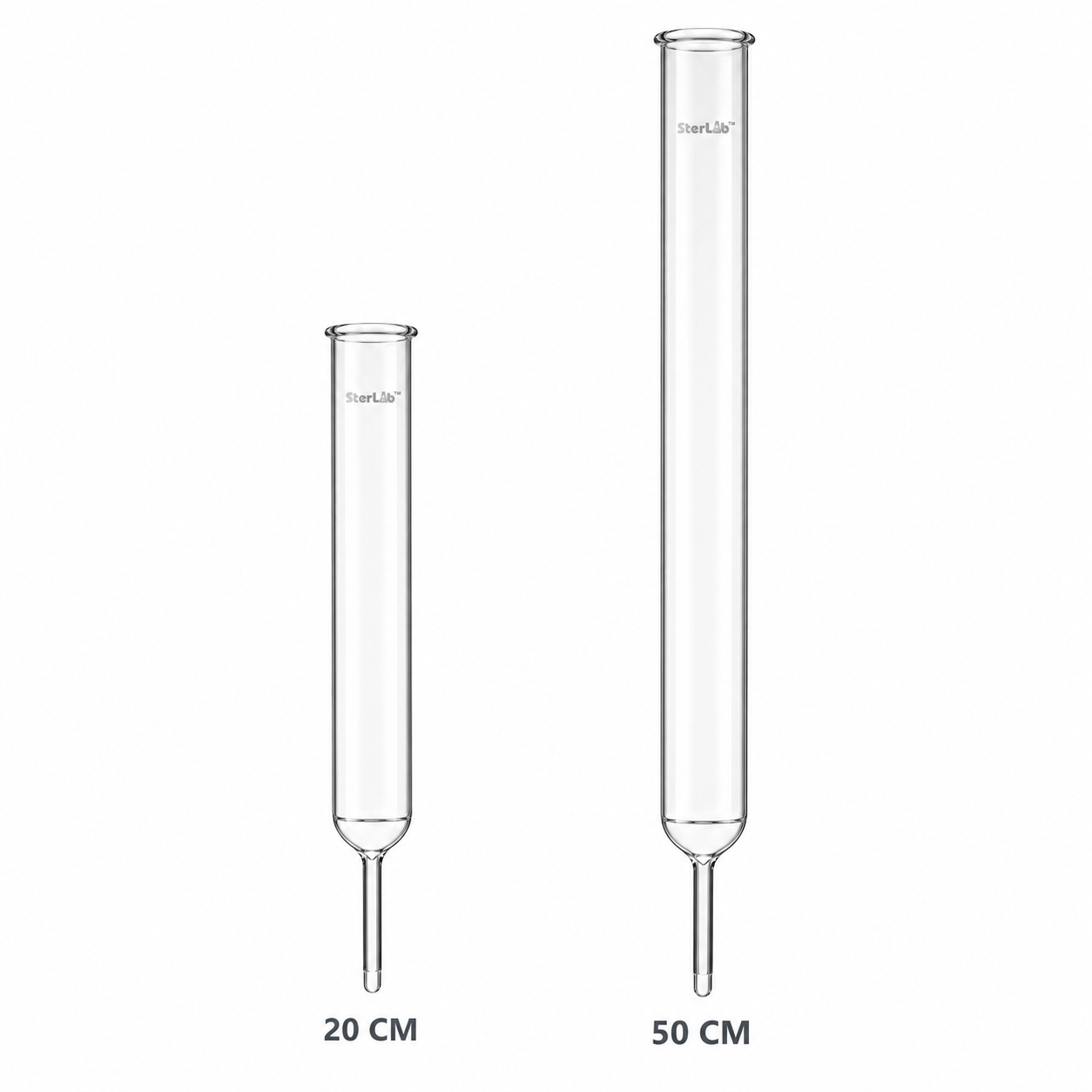

Chromatography Columns with Integral Sintered Disc, without Stopcock are laboratory glassware designed for separation and purification of mixtures using column chromatography. Manufactured from borosilicate glass, each column features an integral sintered glass disc to support the stationary phase while allowing liquid to pass through. The columns are supplied without a stopcock and are available in different lengths and disc diameters for various laboratory applications.

Item codeSize / descriptionQty
SMC-2018/1 15 CM · 10 MM
SMC-2018/2 20 CM · 15 MM
SMC-2018/3 30 CM · 15 MM
SMC-2018/4 40 CM · 20 MM
SMC-2018/5 40 CM · 30 MM
SMC-2018/6 50 CM · 30 MM
SMC-2018/7 50 CM · 40 MM
SMC-2018/8 60 CM · 40 MM
SMC-2018/9 100 CM · 40 MM

Enter the quantity next to each size you need (0 = not needed), then add them all in one go.

    Ask on WhatsApp Product PDF
    • Made in our Ambala facility
    • Export packing & documents
    • Custom sizes on request
    Borosilicate Glassware catalogueFull specifications and item codes Download

    Description

    Chromatography Columns with Integral Sintered Disc, without Stopcock – Borosilicate Glass are designed for laboratory separation, purification, and chromatographic analysis of mixtures. The column body accommodates the stationary phase, while the integral sintered glass disc provides support for the packing material and permits liquid flow through the column during the separation process.

    Constructed from borosilicate glass, these columns offer good thermal and chemical resistance for use with compatible laboratory solvents and reagents. The integral sintered disc is incorporated into the column, eliminating the need for a separate support component. These models are supplied without a stopcock, allowing liquid discharge through the lower outlet according to the apparatus setup.

    Available options include column lengths from 15 CM to 100 CM and sintered disc diameters from 10 MM to 40 MM, enabling selection according to the requirements of the experiment.

    SPECIFICATIONS

    • Product Name: Chromatography Columns with Integral Sintered Disc, without Stopcock

    • Material: Borosilicate Glass

    • Disc Type: Integral Sintered Glass Disc

    • Stopcock: Not Included

    • Available Column Lengths: 15 CM, 20 CM, 30 CM, 40 CM, 50 CM, 60 CM, 100 CM

    • Available Disc Diameters: 10 MM, 15 MM, 20 MM, 30 MM, 40 MM

    • Application: Column chromatography, separation, and purification of mixtures

    AVAILABLE SIZES / MODELS

    Catalogue NumberColumn LengthDisc Diameter
    SMC-2018/115 CM10 MM
    SMC-2018/220 CM15 MM
    SMC-2018/330 CM15 MM
    SMC-2018/440 CM20 MM
    SMC-2018/540 CM30 MM
    SMC-2018/650 CM30 MM
    SMC-2018/750 CM40 MM
    SMC-2018/860 CM40 MM
    SMC-2018/9100 CM40 MM

    KEY FEATURES

    • Borosilicate Glass Construction for compatible laboratory applications.

    • Integral Sintered Disc to support the stationary phase.

    • Stopcock-Free Design for applications requiring an open lower outlet.

    • Multiple Column Lengths and Disc Diameters to suit different experimental requirements.

    • Suitable for Chromatographic Separation and Purification procedures.
