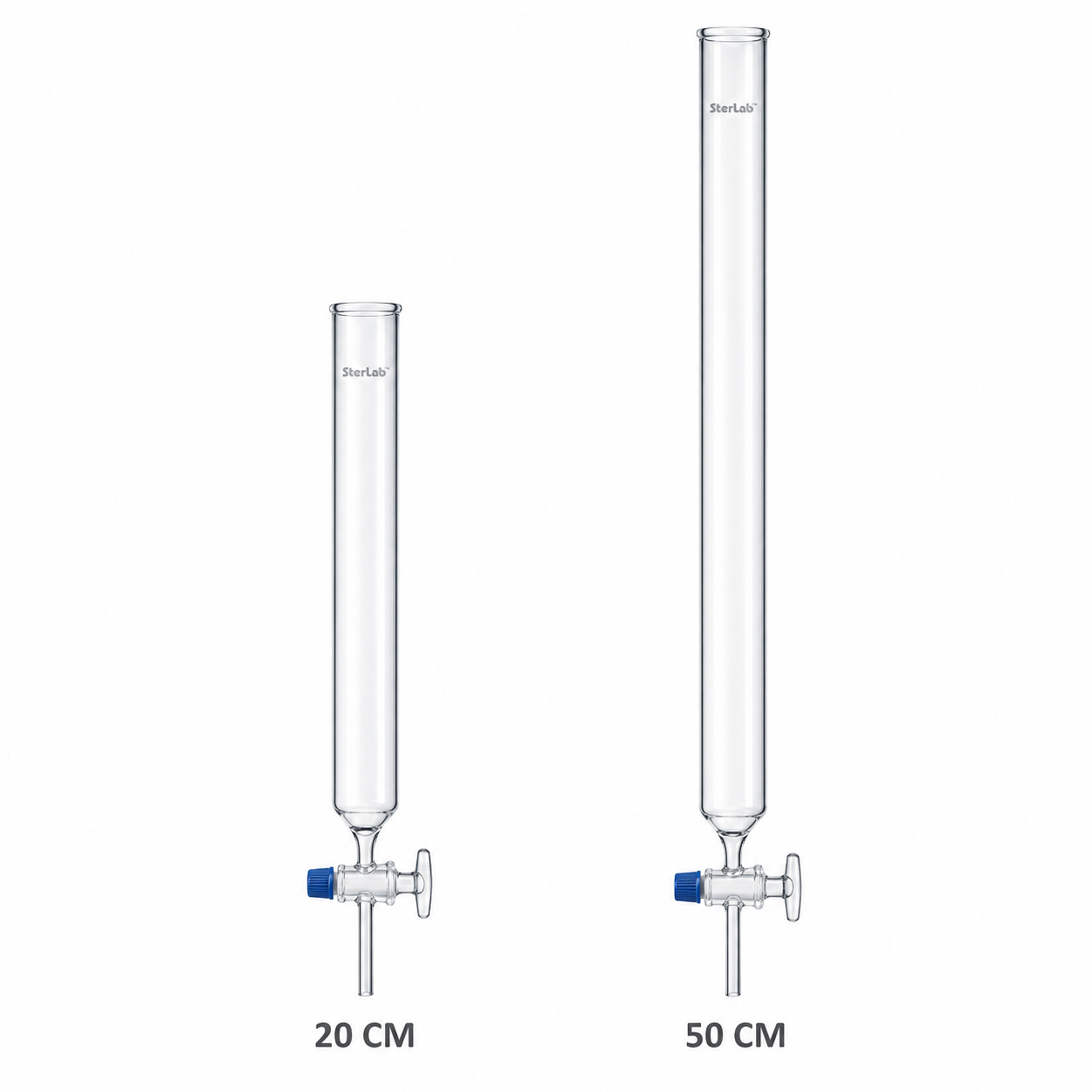

CHROMATOGRAPHY COLUMNS WITH INTEGRAL SINTERED DISC AND STOPCOCK – BOROSILICATE GLASS
Glassware (Borosilicate Glass)

CHROMATOGRAPHY COLUMNS WITH INTEGRAL SINTERED DISC AND STOPCOCK – BOROSILICATE GLASS

Product code: SMC-2018S HSN: 7017

Chromatography Columns with Integral Sintered Disc and Stopcock are laboratory glassware designed for the separation and purification of mixtures using column chromatography. Manufactured from borosilicate glass, each column features an integral sintered glass disc to support the stationary phase and a stopcock to regulate liquid flow through the lower outlet. Available in multiple column lengths and disc diameters to suit different laboratory applications.

Item codeSize / descriptionQty
SMC-2018S/1 15 CM · 10 MM
SMC-2018S/2 20 CM · 15 MM
SMC-2018S/3 30 CM · 15 MM
SMC-2018S/4 40 CM · 20 MM
SMC-2018S/5 40 CM · 30 MM
SMC-2018S/6 50 CM · 30 MM
SMC-2018S/7 50 CM · 40 MM
SMC-2018S/8 60 CM · 40 MM
SMC-2018S/9 100 CM · 40 MM

Enter the quantity next to each size you need (0 = not needed), then add them all in one go.

    Ask on WhatsApp Product PDF
    • Made in our Ambala facility
    • Export packing & documents
    • Custom sizes on request
    Borosilicate Glassware catalogueFull specifications and item codes Download

    Description

    Chromatography Columns with Integral Sintered Disc and Stopcock – Borosilicate Glass are designed for laboratory chromatographic separation, purification, and analysis of mixtures. The column accommodates the stationary phase, while the integral sintered glass disc supports the packing material and permits liquid to pass through during the separation process.

    The fitted stopcock allows controlled regulation of liquid flow through the outlet, helping users manage the movement of solvents and separated components during chromatography. Manufactured from borosilicate glass, these columns offer good thermal and chemical resistance for use with compatible laboratory solvents and reagents.

    The SMC-2018S series is available in column lengths ranging from 15 CM to 100 CM, with sintered disc diameters from 10 MM to 40 MM. This range provides options for different sample volumes, stationary phases, and experimental requirements.

    SPECIFICATIONS

    • Product Name: Chromatography Columns with Integral Sintered Disc and Stopcock

    • Catalogue Series: SMC-2018S

    • Material: Borosilicate Glass

    • Disc Type: Integral Sintered Glass Disc

    • Flow Control: Stopcock Fitted

    • Available Column Lengths: 15 CM, 20 CM, 30 CM, 40 CM, 50 CM, 60 CM, 100 CM

    • Available Disc Diameters: 10 MM, 15 MM, 20 MM, 30 MM, 40 MM

    • Applications: Column chromatography, separation, and purification of mixtures

    AVAILABLE SIZES / MODELS

    Catalogue NumberColumn LengthDisc Diameter
    SMC-2018S/115 CM10 MM
    SMC-2018S/220 CM15 MM
    SMC-2018S/330 CM15 MM
    SMC-2018S/440 CM20 MM
    SMC-2018S/540 CM30 MM
    SMC-2018S/650 CM30 MM
    SMC-2018S/750 CM40 MM
    SMC-2018S/860 CM40 MM
    SMC-2018S/9100 CM40 MM

    KEY FEATURES

    • Borosilicate Glass Construction for compatible laboratory applications.

    • Integral Sintered Disc supports the stationary phase within the column.

    • Fitted Stopcock allows controlled liquid flow through the outlet.

    • Multiple Length and Disc Diameter Options to accommodate different experimental requirements.

    • Suitable for Chromatographic Separation and Purification procedures.
