Product code: SMC-4018 HSN: 7017

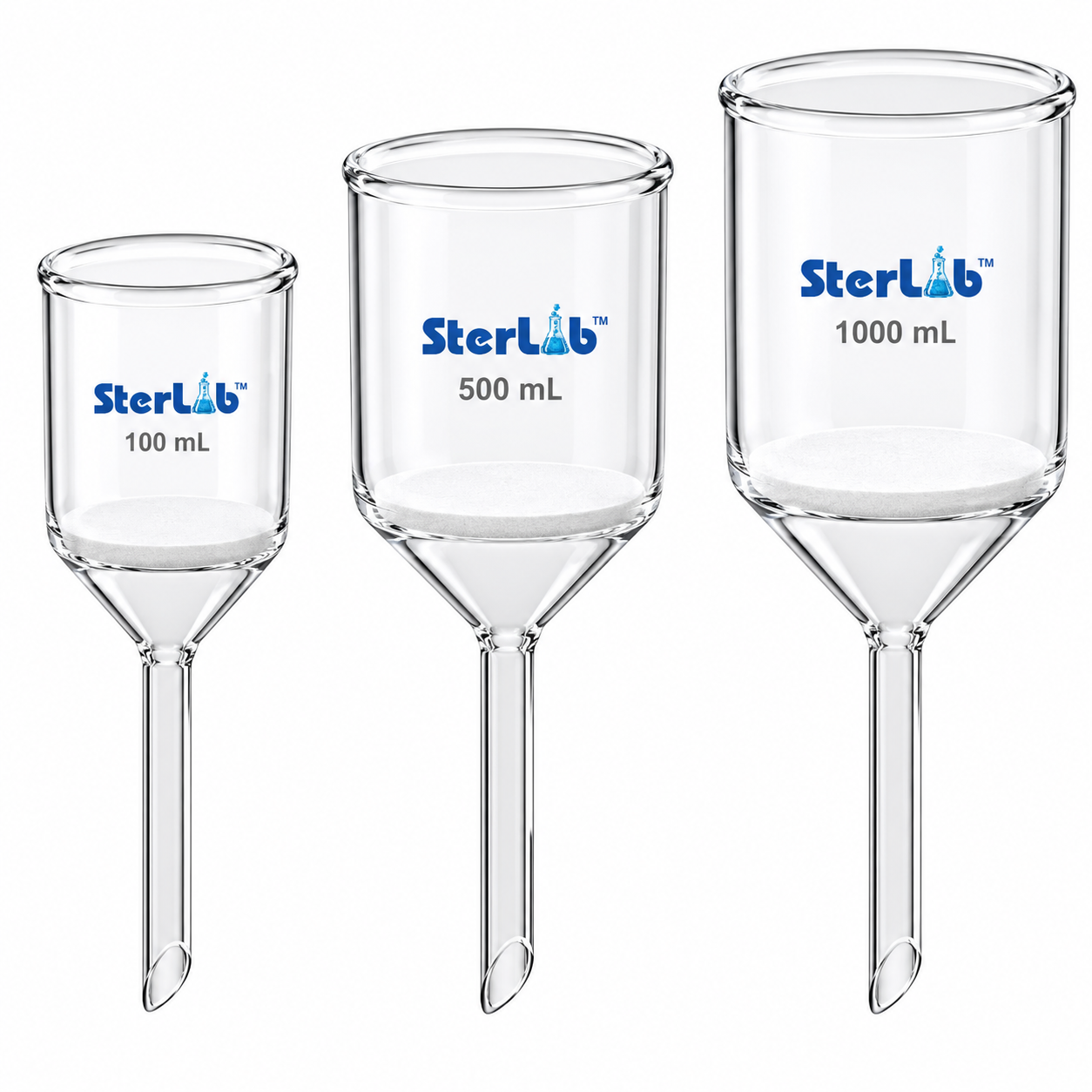

Buchner Funnels with Sintered Disc are laboratory filtration glassware designed for rapid filtration and separation of solids from liquids, particularly in vacuum filtration procedures. Manufactured from borosilicate glass, these funnels feature an integral sintered glass disc that serves as the filtration medium. Available in capacities ranging from 35 ML to 3000 ML, with disc diameters from 30 MM to 140 MM, and porosity options of G-1, G-2, G-3, or G-4, depending on the selected model.
Enter the quantity next to each size you need (0 = not needed), then add them all in one go.
Buchner Funnel with Sintered Disc – Borosilicate Glass is designed for laboratory filtration procedures involving the separation and collection of solid particles from liquids. The funnel incorporates an integral sintered glass disc that acts as the filtering medium, allowing liquid to pass through while retaining particles according to the selected porosity grade.
The available porosity grades G-1, G-2, G-3, and G-4 provide different filtration characteristics to suit varying particle sizes and laboratory requirements. The appropriate grade should be selected according to the sample and intended filtration procedure.
Manufactured from borosilicate glass, these funnels offer good chemical resistance when used with compatible substances and under suitable operating conditions. They are suitable for vacuum filtration, precipitate collection, analytical procedures, and general laboratory filtration applications when used with compatible equipment.
The SMC-4018 series is available in capacities from 35 ML to 3000 ML, with different sintered disc diameters to accommodate varying filtration requirements. The required disc porosity should be specified when ordering.
Product Name: Buchner Funnel with Sintered Disc
Material: Borosilicate Glass
Filtration Medium: Integral Sintered Glass Disc
Available Porosity Grades: G-1, G-2, G-3, G-4
Filtration Method: Gravity or Vacuum Filtration, as appropriate to the setup
Available Capacities: 35 ML, 50 ML, 80 ML, 100 ML, 200 ML, 500 ML, 1000 ML, 1500 ML, 2000 ML, 3000 ML
Disc Diameter Range: 30 MM to 140 MM
Applications: Laboratory Filtration, Solid-Liquid Separation, and Precipitate Collection
| Catalogue Number | Capacity | Disc Diameter |
|---|---|---|
| SMC-4018/1 | 35 ML | 30 MM |
| SMC-4018/2 | 50 ML | 40 MM |
| SMC-4018/3 | 80 ML | 40 MM |
| SMC-4018/4 | 100 ML | 40 MM |
| SMC-4018/5 | 200 ML | 65 MM |
| SMC-4018/6 | 500 ML | 90 MM |
| SMC-4018/7 | 1000 ML | 125 MM |
| SMC-4018/8 | 1500 ML | 125 MM |
| SMC-4018/9 | 2000 ML | 125/140 MM |
| SMC-4018/10 | 3000 ML | 140 MM |
Borosilicate Glass Construction for compatible laboratory applications.
Integral Sintered Glass Disc for filtration without separate filter paper.
Four Porosity Options: G-1, G-2, G-3, and G-4.
Multiple Capacity Options from 35 ML to 3000 ML.
Various Disc Diameters to suit different filtration requirements.
Suitable for Vacuum Filtration and Precipitate Collection when used with compatible apparatus.
Ideal for Analytical, Research, Educational, and General Laboratory Filtration.
