Product code: SMC-2017 HSN: 7017

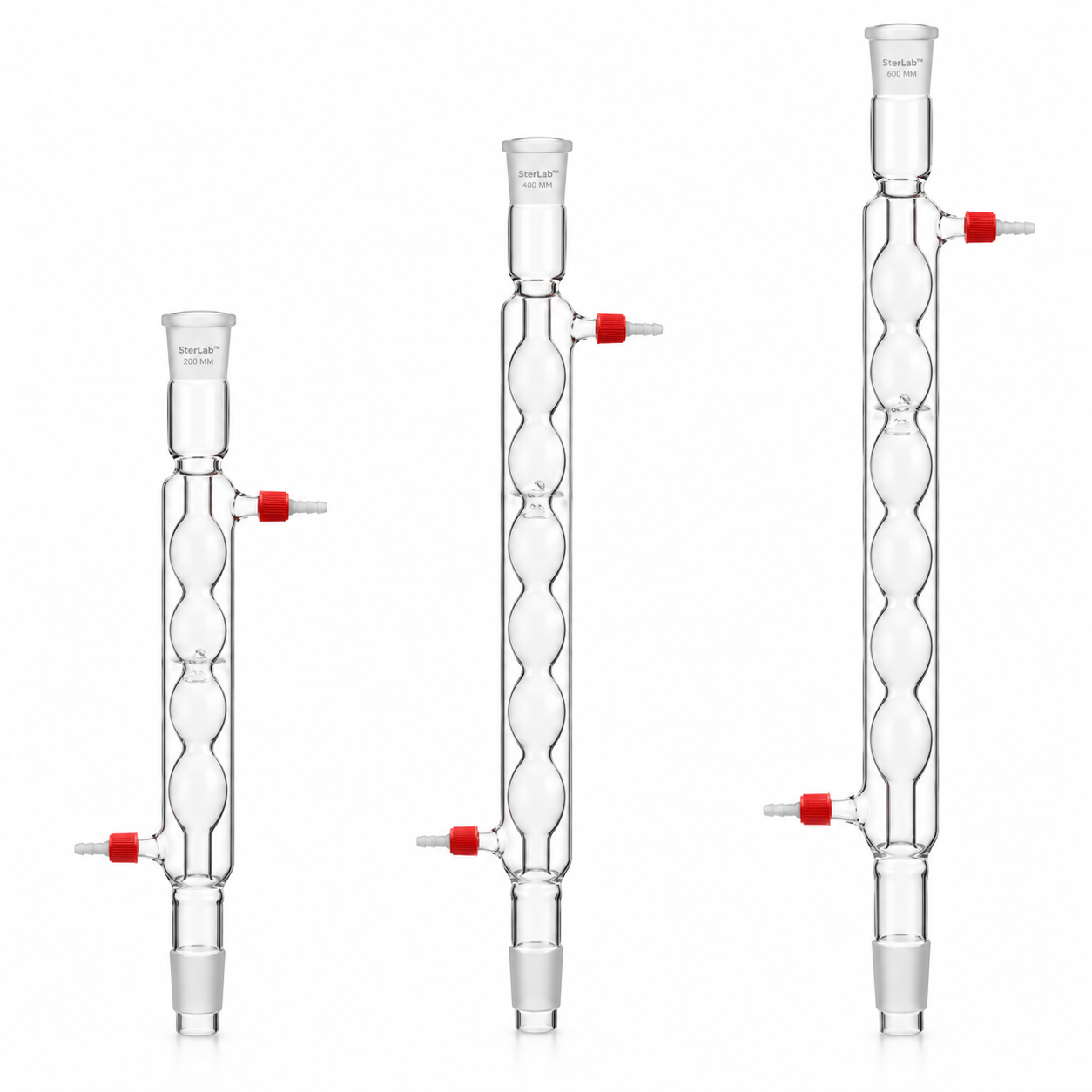

Allihn Condensers (Bulb Condensers) are laboratory glassware designed for reflux and vapour condensation during chemical experiments and laboratory procedures. Manufactured from borosilicate glass, they feature a series of bulbs along the inner tube to provide an increased surface area for heat exchange. Available in different lengths and interchangeable socket-and-cone or cone-only joint configurations.
Enter the quantity next to each size you need (0 = not needed), then add them all in one go.
Allihn Condensers (Bulb Condensers) – Borosilicate Glass are commonly used in laboratory reflux applications, where vapours are cooled and condensed before returning to the reaction vessel. The condenser features a central tube with a series of expanded bulb-shaped sections, providing an increased surface area for heat exchange.
Manufactured from borosilicate glass, these condensers offer good thermal and chemical resistance for compatible laboratory applications. They are available in lengths ranging from 200 MM to 750 MM, with cone-only joint options and models featuring both socket and cone joints. Available joint sizes include B19, B24, B29, B34, B40, and B50.
These condensers are suitable for use in compatible laboratory glassware assemblies for reflux and other condensation processes. The appropriate model should be selected according to the required joint size, length, and apparatus configuration.
Product Name: Allihn Condensers (Bulb Condensers)
Material: Borosilicate Glass
Design: Bulb-Type Condenser
Joint Configuration: Cone Only or Socket and Cone, depending on model
Available Joint Sizes: B19, B24, B29, B34, B40, B50
Available Lengths: 200 MM, 250 MM, 300 MM, 400 MM, 500 MM, 600 MM, 750 MM
Applications: Laboratory reflux, vapour condensation, and chemical experiments
| Catalogue Number | Socket Size | Cone Size | Length |
|---|---|---|---|
| SMC-2017/1 | — | B19 | 200 MM |
| SMC-2017/2 | — | B24 | 200 MM |
| SMC-2017/3 | — | B29 | 200 MM |
| SMC-2017/4 | — | B34 | 200 MM |
| SMC-2017/5 | — | B40 | 200 MM |
| SMC-2017/6 | — | B50 | 200 MM |
| SMC-2017/7 | — | B50 | 250 MM |
| SMC-2017/8 | B19 | B19 | 200 MM |
| SMC-2017/9 | B24 | B24 | 200 MM |
| SMC-2017/10 | B19 | B19 | 300 MM |
| SMC-2017/11 | B24 | B24 | 300 MM |
| SMC-2017/12 | B24 | B24 | 400 MM |
| SMC-2017/13 | B24 | B24 | 500 MM |
| SMC-2017/14 | B34 | B34 | 500 MM |
| SMC-2017/15 | B34 | B34 | 600 MM |
| SMC-2017/16 | B34 | B34 | 750 MM |
Borosilicate Glass Construction for suitable laboratory applications.
Bulb-Type Design provides an increased surface area for heat exchange.
Suitable for Reflux Operations and laboratory condensation processes.
Multiple Joint Configurations to suit compatible laboratory assemblies.
Wide Range of Lengths and Joint Sizes for different experimental requirements.
Length specification: The original website lists the first seven models with a length of 200 or 250 but does not explicitly state the unit. These lengths have been presented as MM for consistency.
Confirm joint dimensions and compatibility with the intended laboratory apparatus.
Inspect glassware for cracks or chips before use and avoid sudden temperature changes.
